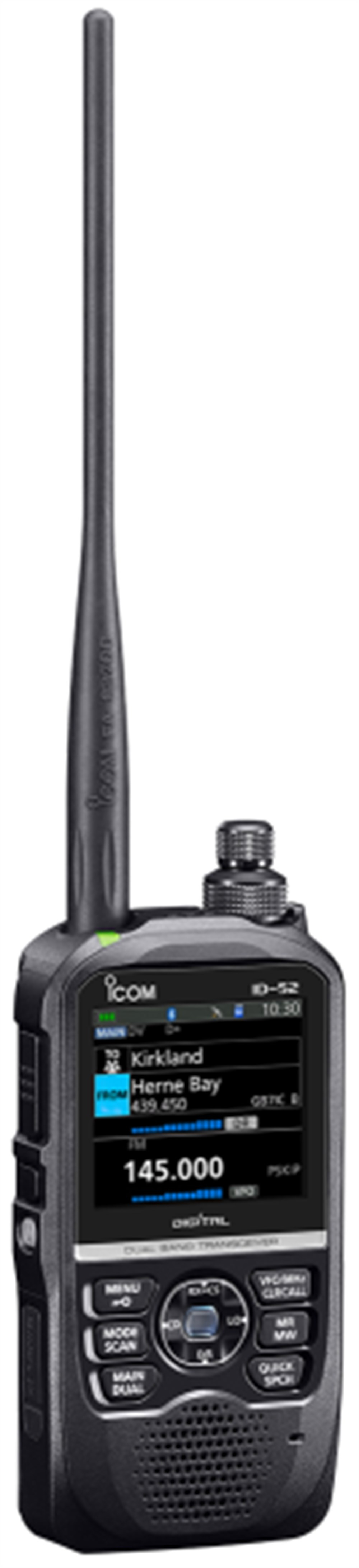

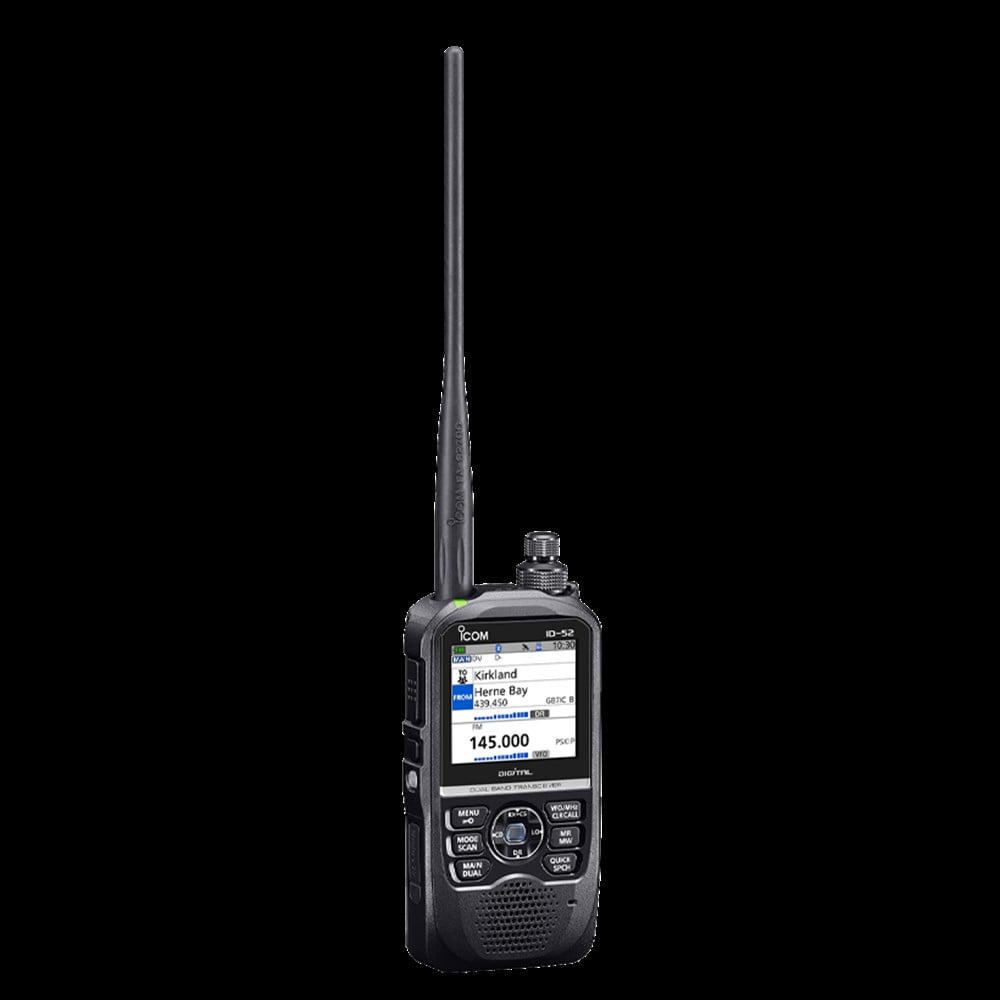

Icom ID-52E Dual Band Analog/Dijital El Telsizi (İzne tabidir)

Icom ID-52E Dual Band Analog/Dijital El Telsizi (İzne tabidir) (ID52E)

Marka : ICOM

İndirim Oranı : %2 İndirim

KDV Dahil : $780.00

İndirimli : $640.00 + KDV

KDV Dahil : 27.087,36 TL

SİPARİŞ ÖNCESİ STOK DURUMUNU LÜTFEN SORUNUZ

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Kargo Bedava

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

GENERAL

Frequency coverage (Unit: MHz)	Version	Transmit	Receiver	Broadcast band
EUR	144–146, 430–440	(A) 108–174, 225–479* (B) 137–174, 375–479*	76.0–108.0
*(A) means A band, (B) means B band. Guaranteed range: 144–146, 430–440 MHz**
Type of emission	F2D, F3E, F7W
Mode	DV, FM, FM-N, WFM, AM, AM-N* (* WFM, AM and AM-N are Rx only)
Number of memory channels	1000 memory channels, 4 call channels, 50 scan edges, 100 skip channels, 500 broadcast stations, 2500 repeaters, 300 call signs and 300 GPS memories
Frequency resolution	5, 6.25, 8.33, 10, 12.5, 15, 20, 25, 30, 50, 100, 125 and 200 kHz Selectable depending on the operating band.
Operating temperature range	–20℃ to +60℃ ; –4°F to +140°F
Frequency stability	±2.5 ppm (–20℃ to +60℃ on the basis of 25℃)
Antenna impedance	50 Ω (SMA)
Power supply requirement	Battery pack	7.4 V DC (with BP-272), 7.2 V DC (with BP-307)
Alkaline cells	5.5 V DC (with BP-273)
External DC	10–16 V DC
Current drain (at 7.4 V DC)	Tx High	Less than 2.5 A
Rx AF Max.	Less than 450 mA (DV), Less than 400 mA (FM, FM-N) (Internal SP, 8 Ω)
Dimensions (W×H×D) (projections not included)	61.1 × 121.6 × 29.7 mm (main unit) 61.1 × 121.6 × 34.8 mm (with BP-272)
Weight (approx.)	330 g (with BP-272 & antenna)

Modulation system	DV	GMSK reactance modulation,
FM, FM-N	FM reactance modulation
Output power (at 7.4 V DC)	5 W, 2.5 W, 1.0 W, 0.5 W, 0.1 W (High, Mid, Low2, Low1, S-low)
Spurious emissions	Less than –60 dBc (High, Mid), Less than –13 dBm (Low2, Low1, S-low)
Max. frequency deviation	±5.0/2.5 kHz (FM/FM-N)
Ext. Mic impedance	2.2 kΩ

Frequency
coverage
(Unit: MHz) Version Transmit Receiver Broadcast band

EUR 144–146,
430–440 (A) 108–174, 225–479*
(B) 137–174, 375–479*
76.0–108.0

(A) means A band, (B) means B band. Guaranteed range: * 144–146, 430–440 MHz

Type of emission F2D, F3E, F7W

Mode DV, FM, FM-N, WFM*, AM*, AM-N*
(* WFM, AM and AM-N are Rx only)

Number of memory channels 1000 memory channels, 4 call channels, 50 scan edges,
100 skip channels, 500 broadcast stations,
2500 repeaters, 300 call signs and 300 GPS memories

Frequency resolution 5, 6.25, 8.33*, 10, 12.5, 15, 20, 25, 30, 50, 100, 125 and 200 kHz
* Selectable depending on the operating band.

Operating temperature range –20℃ to +60℃ ; –4°F to +140°F

Frequency stability ±2.5 ppm (–20℃ to +60℃ on the basis of 25℃)

Antenna impedance 50 Ω (SMA)

Power supply
requirement Battery pack 7.4 V DC (with BP-272), 7.2 V DC (with BP-307)

Alkaline cells 5.5 V DC (with BP-273)

External DC 10–16 V DC

Current drain
(at 7.4 V DC) Tx High Less than 2.5 A

Rx AF Max. Less than 450 mA (DV),
Less than 400 mA (FM, FM-N) (Internal SP, 8 Ω)

Dimensions (W×H×D)
(projections not included)
61.1 × 121.6 × 29.7 mm (main unit)

61.1 × 121.6 × 34.8 mm (with BP-272)

Weight (approx.) 330 g (with BP-272 & antenna)

TRANSMITTER

Modulation system DV GMSK reactance modulation,

FM, FM-N FM reactance modulation

Output power (at 7.4 V DC) 5 W, 2.5 W, 1.0 W, 0.5 W, 0.1 W
(High, Mid, Low2, Low1, S-low)

Spurious emissions Less than –60 dBc (High, Mid),
Less than –13 dBm (Low2, Low1, S-low)

Max. frequency deviation ±5.0/2.5 kHz (FM/FM-N)

Ext. Mic impedance 2.2 kΩ

RECEIVER

Sensitivity	DV	Less than 0.2 μV (at 1% BER)
FM, FM-N	Less than 0.18 μV (at 12 dB SINAD)
Selectivity	More than 50 dB (DV, FM-N), More than 55 dB (FM)
Spurious rejection	More than 60 dB
Audio output power	Internal SP	More than 750 mW (8 Ω load)
External SP	More than 200 mW (8 Ω load)
Receiver sensitivity (Except amateur bands.)
	Frequency range (Unit: MHz)	FM/FM-N/WFM （12 dB SINAD）	AM/AM-N （10 dB S/N）
BC band	76.000–108.000	Less than 1 μV (WFM)	ー
A band	108.000 – 136.991	ー	Less than 1 μV
137.000 – 142.000	Less than 0.18 μV	Less than 1 μV
142.005 – 148.000	Less than 0.18 μV	ー
148.005 – 174.000	Less than 0.32 μV	ー
225.000 – 259.995	Less than 0.56 μV	Less than 1.8 μV*
260.000 – 354.995	Less than 0.32 μV	Less than 1 μV*
355.000 – 374.995	Less than 0.5 μV	Less than 1.8 μV*
375.000 – 399.995	Less than 0.5 μV	ー
400.000 – 479.000	Less than 0.32 μV	ー
B band	137.000 – 148.000	Less than 0.18 μV	ー
148.005 – 174.000	Less than 0.32 μV	ー
375.000 – 399.995	Less than 0.5 μV	ー
400.000 – 479.000	Less than 0.32 μV	ー

Sensitivity DV Less than 0.2 μV (at 1% BER)

FM, FM-N Less than 0.18 μV (at 12 dB SINAD)

Selectivity More than 50 dB (DV, FM-N), More than 55 dB (FM)

Spurious rejection More than 60 dB

Audio output power Internal SP More than 750 mW (8 Ω load)

External SP More than 200 mW (8 Ω load)

Receiver sensitivity (Except amateur bands.)

Frequency range
(Unit: MHz) FM/FM-N/WFM （12 dB SINAD） AM/AM-N
（10 dB S/N）

BC band 76.000–108.000 Less than 1 μV (WFM) ー

A band 108.000 – 136.991 ー Less than 1 μV

137.000 – 142.000 Less than 0.18 μV Less than 1 μV

142.005 – 148.000 Less than 0.18 μV ー

148.005 – 174.000 Less than 0.32 μV ー

225.000 – 259.995 Less than 0.56 μV Less than 1.8 μV*

260.000 – 354.995
Less than 0.32 μV Less than 1 μV*

355.000 – 374.995 Less than 0.5 μV Less than 1.8 μV*

375.000 – 399.995 Less than 0.5 μV ー

400.000 – 479.000 Less than 0.32 μV ー

B band 137.000 – 148.000 Less than 0.18 μV ー

148.005 – 174.000 Less than 0.32 μV ー

375.000 – 399.995 Less than 0.5 μV ー

400.000 – 479.000 Less than 0.32 μV ー

*AM-N mode cannot be received from 225 to 374.995 MHz.
All stated specifications are subject to change without notice or obligation.

Supplied Accessories

Battery pack, BP-272

Wall charger, BC-167SD

Antenna, FA-S270C

Belt clip, MB-127

Hand strap
