Icom IC-7600 HF+50MHz Sabit Telsiz (İzne tabidir)

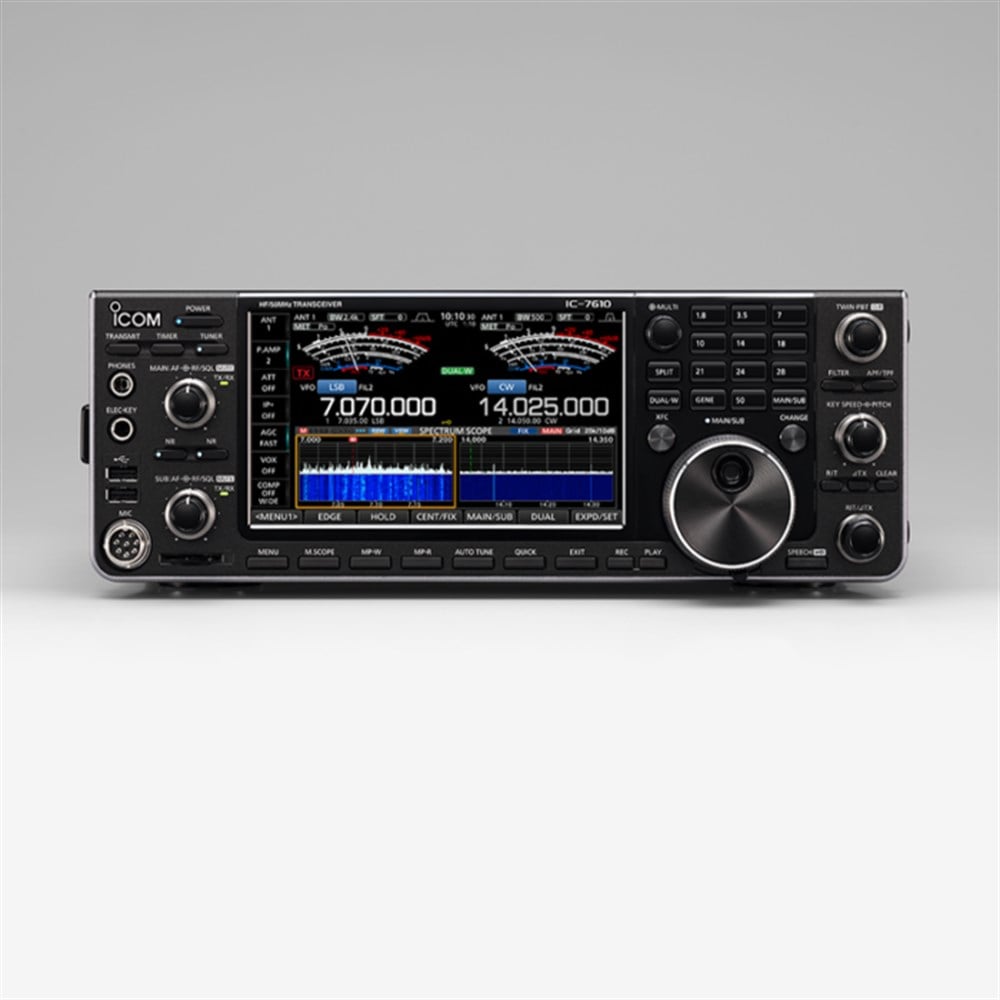

Icom IC-7610 HF+50MHz Sabit Telsiz (İzne tabidir) (IC7610)

Marka : ICOM

İndirim Oranı : %4 İndirim

KDV Dahil : $4,750.80

İndirimli : $3,799.00 + KDV

KDV Dahil : 160.788,88 TL

SİPARİŞ ÖNCESİ LÜTFEN TESLİM SÜRESİNİ SORUNUZ

KEGM AMATÖR TELSİZ BELGESİ İBRASI İLE SATILIR

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Karşılaştır

Fiyat Düşünce Haber Ver

Kargo Bedava

Gelince Haber Ver

Tavsiye Et

Yorum Yaz

General
Frequency coverage Rx Tx	0.030– 60.000 MHz^1 1.800–1.999, 3.500–3.999, 5.255–5.4052 7.000–7.300, 10.100–10.150, 14.000–14.350, 18.068–18.168, 21.000–21.450, 24.890–24.990, 28.000–29.700, 50.000–54.000 MHz 1 Guaranteed range: 0.500–29.999, 50.000–54.000 MHz. 2 Some frequency bands are not guaranteed.
Mode	USB, LSB, CW, RTTY, PSK31/63, AM, FM
Number of channels	101 (99 regular, 2 scan edges)
Antenna connectors	SO-239 × 2 (50 Ω unbalanced (Tuner off)) BNC × 1 (RX antenna In/Out)
Power supply requirement	13.8 V DC ±15%
Operating temperature range	0°C to +50°C; +32°F to +122°F
Frequency stability	Less than ±0.5ppm (0°C to +50°C, after warm up)
Frequency resolution	1 Hz (minimum)
Power consumption TX RX	23 A (at 100 W output power) 3.0 A (Standby), 3.5 A (Maximum audio)
Dimensions (W×H×D) (projections not included)	340 × 118 × 277 mm; 13.4 × 4.6 × 10.9 in
Weight (approx.)	8.5 kg; 18.7 lb

Transmitter
Output power (HF/50 MHz)	SSB/CW/FM/RTTY/PSK: 1–100 W AM: 1–25 W Digital P.S.N.
Modulation system SSB AM FM	Digital P.S.N. modulation Digital low power modulation Digital Reactance modulation
Spurious emission HF Bands 50 MHz band	Less than –50 dB Less than –63 dB
Carrier suppression	More than 50 dB
Unwanted sideband	More than 50 dB
Microphone impedance	600Ω (8-pin connector)

Receiver
Receiver system	Direct Sampling Superheterodyne
Intermediate frequencies	12 kHz
Sensitivity*3 SSB/CW (at 10 dB S/N) AM (at 10 dB S/N) FM (at 12 dB SINAD)	0.5– 1.799 MHz – 6.3 μV typ. – 1.8– 29.999 MHz 0.16 μV typ. 2.0 μV typ. – 28.0– 29.7 MHz – – 0.5 μV typ. 50–54 MHz 0.13 μV typ. 1.0 μV typ. 0.32 μV typ. *3 HF: Preamp 1 ON, 50 MHz: Preamp 2 ON, BW: SSB/CW=2.4 kHz, AM=6 kHz, FM=15 kHz
Squelch sensitivity (Threshold)	SSB: Less than 3.2 μV (Preamp ON) FM: Less than 0.32 μV (Preamp ON
Selectivity (Filter shape: Sharp) SSB (BW: 2.4 kHz) CW (BW: 500 Hz) RTTY (BW: 500 Hz) AM (BW: 6 kHz) FM (BW: 15 kHz)	More than 2.4 kHz/–6 dB 500 Hz/–6 dB 500 Hz/–6 dB 6.0 kHz/–6 dB 12.0 kHz/–6 dB Less than 3.6 kHz/–60 dB 700 Hz/–60 dB 700 Hz/–60 dB 15 kHz/–60 dB 20 kHz/–60 dB
Spurious and image rejection ratio HF bands 50 MHz band	More than 70dB More than 70 dB (Except for ADC Aliasing)
Audio output power	More than 2.6W at 10% distortion with an 8Ω load

Tuner
Frequency range	1.9–50 MHz bands
Matching impedance range	16.7 Ω–150 Ω unbalanced (VSWR better than 3: 1)
Tuning accuracy	VSWR 1.5: 1 or less
Tuning time	2–3 seconds (average) (Maximum 15 seconds)

General

Frequency coverage
Rx
Tx
0.030– 60.000 MHz^*1
1.800–1.999, 3.500–3.999, 5.255–5.405*2
7.000–7.300, 10.100–10.150, 14.000–14.350,
18.068–18.168, 21.000–21.450, 24.890–24.990,
28.000–29.700, 50.000–54.000 MHz
*1 Guaranteed range: 0.500–29.999, 50.000–54.000 MHz.
*2 Some frequency bands are not guaranteed.

Mode USB, LSB, CW, RTTY, PSK31/63, AM, FM

Number of channels 101 (99 regular, 2 scan edges)

Antenna connectors SO-239 × 2 (50 Ω unbalanced (Tuner off))
BNC × 1 (RX antenna In/Out)

Power supply requirement 13.8 V DC ±15%

Operating temperature range 0°C to +50°C; +32°F to +122°F

Frequency stability Less than ±0.5ppm
(0°C to +50°C, after warm up)

Frequency resolution 1 Hz (minimum)

Power consumption
TX
RX
23 A (at 100 W output power)
3.0 A (Standby), 3.5 A (Maximum audio)

Dimensions (W×H×D)
(projections not included) 340 × 118 × 277 mm;
13.4 × 4.6 × 10.9 in

Weight (approx.) 8.5 kg; 18.7 lb

Transmitter

Output power (HF/50 MHz) SSB/CW/FM/RTTY/PSK: 1–100 W
AM: 1–25 W Digital P.S.N.

Modulation system
SSB
AM
FM
Digital P.S.N. modulation
Digital low power modulation
Digital Reactance modulation

Spurious emission
HF Bands
50 MHz band
Less than –50 dB
Less than –63 dB

Carrier suppression More than 50 dB

Unwanted sideband More than 50 dB

Microphone impedance 600Ω (8-pin connector)

Receiver

Receiver system Direct Sampling Superheterodyne

Intermediate frequencies 12 kHz

Sensitivity*3
SSB/CW (at 10 dB S/N)
AM (at 10 dB S/N)
FM (at 12 dB SINAD)
0.5– 1.799 MHz
–
6.3 μV typ.
–

1.8– 29.999 MHz
0.16 μV typ.
2.0 μV typ.
–

28.0– 29.7 MHz
–
–
0.5 μV typ.

50–54 MHz
0.13 μV typ.
1.0 μV typ.
0.32 μV typ.

*3 HF: Preamp 1 ON, 50 MHz: Preamp 2 ON, BW: SSB/CW=2.4 kHz, AM=6 kHz, FM=15 kHz

Squelch sensitivity (Threshold) SSB: Less than 3.2 μV (Preamp ON)
FM: Less than 0.32 μV (Preamp ON

Selectivity (Filter shape: Sharp)
SSB (BW: 2.4 kHz)
CW (BW: 500 Hz)
RTTY (BW: 500 Hz)
AM (BW: 6 kHz)
FM (BW: 15 kHz)
More than
2.4 kHz/–6 dB
500 Hz/–6 dB
500 Hz/–6 dB
6.0 kHz/–6 dB
12.0 kHz/–6 dB

Less than
3.6 kHz/–60 dB
700 Hz/–60 dB
700 Hz/–60 dB
15 kHz/–60 dB
20 kHz/–60 dB

Spurious and image rejection ratio
HF bands
50 MHz band
More than 70dB
More than 70 dB (Except for ADC Aliasing)

Audio output power More than 2.6W at 10% distortion with an 8Ω load

Tuner

Frequency range 1.9–50 MHz bands

Matching impedance range 16.7 Ω–150 Ω unbalanced (VSWR better than 3: 1)

Tuning accuracy VSWR 1.5: 1 or less

Tuning time 2–3 seconds (average) (Maximum 15 seconds)

All stated specifications are subject to change without notice or obligation.

Supplied Accessories

Hand microphone, HM-219

DC power cable

Fuses

Plugs

KEGM AMATÖR TELSİZ BELGESİ İBRAZI İLE SATILIR

Havale ile Ödeme 127.291,19 TL + KDV
