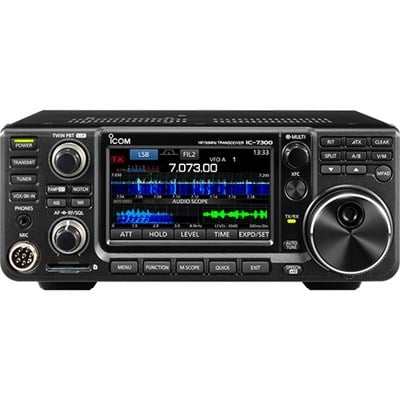

Icom IC-7300 HF+50MHz Yeni nesil Amatör Telsiz Cıhazı
Icom IC-7300 HF+50MHz Yeni nesil Amatör Telsiz Cıhazı
Icom IC-7300 HF+50MHz Sabit Telsiz Tunerli-SORUNUZ
Icom IC-7300 HF+50MHz Yeni nesil Amatör Telsiz Cıhazı
Icom IC-7300 HF+50MHz Yeni nesil Amatör Telsiz Cıhazı
Icom IC-7300 HF+50MHz Yeni nesil Amatör Telsiz Cıhazı

Icom IC-7300 HF+50MHz Sabit Telsiz, Tunerli (İzne tabidir) (IC7300)

Marka : ICOM
İndirim Oranı : %4 İndirim
KDV Dahil : $1,668.00
İndirimli : $1,333.00  + KDV
KDV Dahil : 56.417,89 TL

* *KEGM "AMATÖR TELSİZ  BELGESİ" olan şahıslara satılır **

** ÖZEL SİPARİŞLE İTHAL EDİLİR **



:
Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Yorum Yaz

General Specifications
Frequency coverage
RX
TX




 0.030–74.800MHz**
1.800–1.999, 3.500–3.999, 5.255–5.405*, 7.000–7.300, 10.100–10.150, 14.000–14.350, 18.068–18.168, 21.000–21.450, 24.890–24.990, 28.000–29.700, 50.000–54.000

Bilgi Teknolojileri ve İletişim Kurumu tahsisli amatör bant frekanslarında haberleşmeye izin verilir.

* Some frequency bands are not guaranteed.
** Guaranteed range: 0.500–29.999, 50.000–54.000MHz.
Mode SSB, CW, RTTY, AM, FM
Number of channels 101 (99 regular, 2 scan edges)
Antenna connector SO-239 (50Ω)
Power supply requirement 13.8V DC ±15%
Power Consumption Tx: 21A (at 100W output power)
Rx: 0.9A typical (Standby), 1.25A (Maximum audio)
Operating temperature range –10˚C to +60˚C; 14˚F to 140˚F
Frequency stability Less than ±0.5ppm (–10˚C to +60˚C; 14˚F to 140˚F)
Frequency resolution 1Hz
Dimensions

240×94×238mm; 9.45×3.7×9.37in

(projections not included)
Weight (approximately) 4.2kg; 9.26 lb

Transmitter
Output power (HF/50MHz) SSB/CW/FM/RTTY: 2–100W, AM: 1–25W
Modulation system
SSB
AM
FM
Digital P.S.N. modulation
Digital Low power modulation
Digital Reactance modulation
Spurious emission Less than –50dB (HF bands), Less than –63dB (50MHz band)
Carrier suppression More than 50dB
Unwanted sideband More than 50dB
Microphone impedance 600Ω

Receiver
Receiver system Direct Sampling Superheterodyne
Intermediate frequency 36kHz
Sensitivity*
SSB/CW (at 10dB S/N)
0.5–1.8MHz
1.8–29.995MHz
28.0–29.7MHz
50MHz band
AM (at 10dB S/N)
0.5–1.8MHz
1.8–29.995MHz
28.0–29.7MHz
50MHz band
FM (at 12dB SINAD)
0.5–1.8MHz
1.8–29.995MHz
28.0–29.7MHz
50MHz band

-
0.16μV
-
0.13μV

12.6μV
2.0μV
-
1.0μV

-
-
0.5μV
0.25μV
* HF: Preamp 1 ON, 50MHz: Preamp 2 ON
Squelch sensitivity* (Threshold)
SSB: Less than 5.6μV, FM:
Less than 0.3μV
* HF: Preamp 1 ON, 50MHz: Preamp 2 ON
Selectivity (sharp filter shape)
SSB (BW: 2.4KHz)

CW (BW: 500Hz)

RTTY (BW: 500Hz)

AM (BW: 6kHz)

FM (BW: 15kHz)

More than 2.4kHz/–6dB
Less than 3.4kHz/–40dB
More than 500Hz/–6dB
Less than 700Hz/–40dB
More than 500Hz/–6dB
Less than 800Hz/–40dB
More than 6.0kHz/–6dB
Less than 10kHz/–40dB
More than 12.0kHz/–6dB
Less than 22kHz/–40dB
Spurious and image rejection ratio HF: More than 70dB
50MHz: More than 70dB (Except for ADC Aliasing)
Audio output power More than 2.5W (at 10% distortion with an 8Ω load, 1kHz)

Tuner
Frequency range 1.9–50MHz bands
Matching impedance range 16.7Ω–150Ω unbalanced (VSWR better than 1: 3)
Tuning accuracy VSWR 1: 1.5 or less
Tuning time 2–3 seconds (Maximum 15 seconds)

All stated specifications are subject to change without notice or obligation.

SADECE KEGM AMATÖR TELSİZ BELGESİ SAHİPLERİNE VE BTK/KEGM'den

İZİN ALMIŞ KURUM VE KURULUŞLARA SATILIR. SİPARİŞ ANINDA GEÇERLİ

SÜRESİ OLAN BELGE veya BTK İZİN YAZISI  İBRAZI ŞARTTIR.

Rear panel view



Back panel
