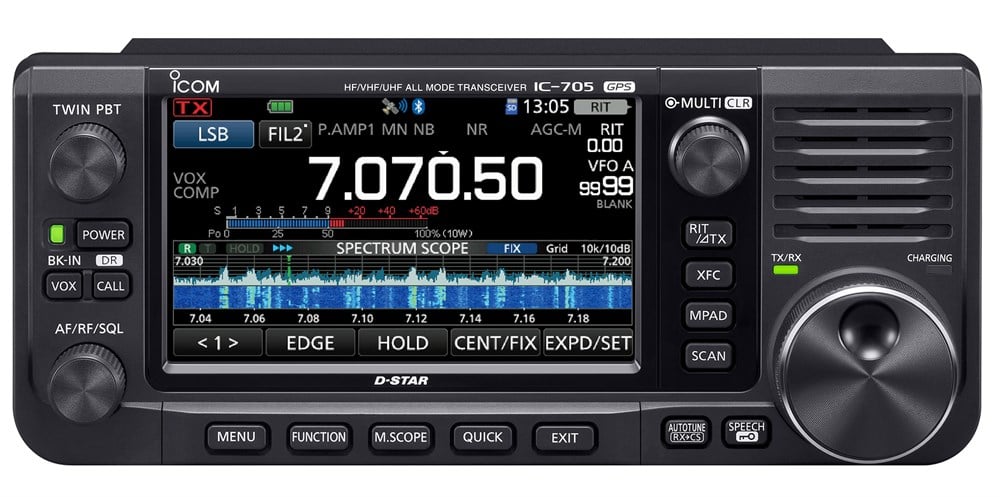

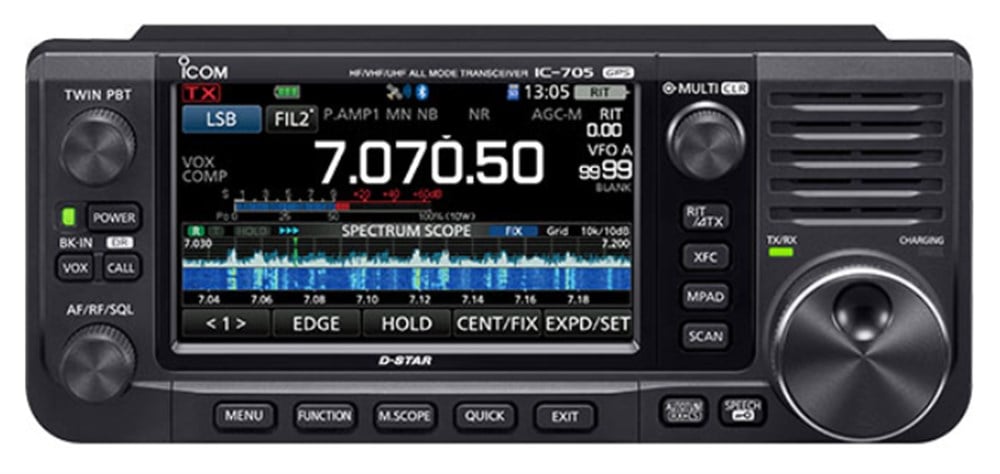

Icom'un en son çıkan yeni QRP modeli
General
Frequency coverage (Unit: MHz)
Receiver
0.030–199.999* 400.000–470.000*
Transmitter
1.800–1.999 3.500–3.999 5.255–5.405* 7.000–7.300 10.100–10.150 14.000–14.350 18.068–18.168 21.000–21.450 24.890–24.990 28.000–29.700 50.000–54.000 144.000–148.000 430.000–450.000
Mode
USB, LSB, CW, RTTY, AM, DV, FM, WFM (Rx only)
No. of memory channels
Memory channels: 500 channels (100 groups)
Scan edges: 25 channels
Call channels: 4 channels (2 channels × 2 bands)

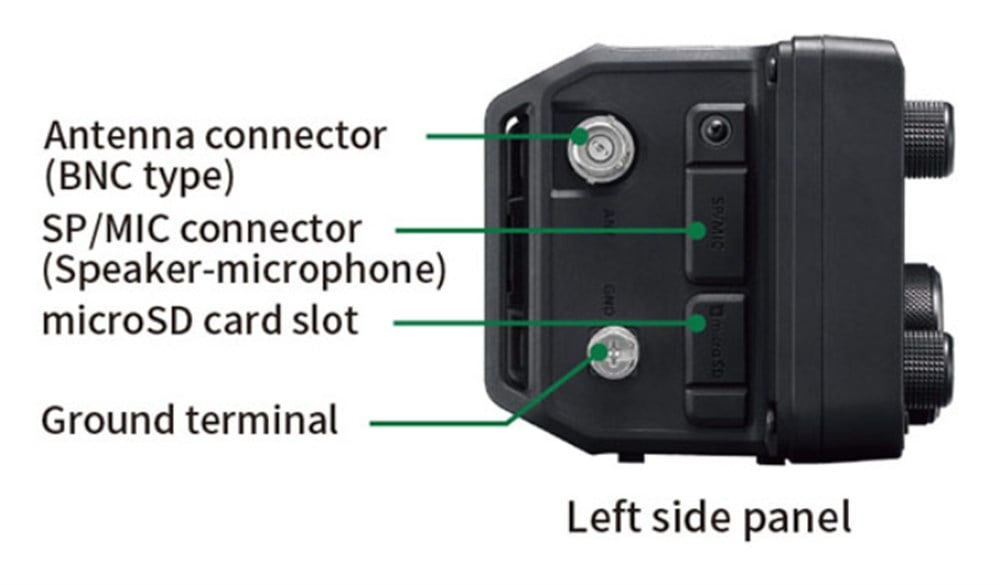

Antenna connector
BNC connector (50Ω) (One connector for all bands)
Power supply requirement
13.8 V DC ±15% (with external power supply)
7.4 V DC (with BP-272)
Operating temp. range
–10°C to +60°C; +14°F to +140°F
Frequency stability
Less than ± 0.5 ppm
(–10°C to +60°C; 14°F to 140°F)
Frequency resolution
1 Hz
Current drain Tx (Max. power) RX (Max. audio) RX (Standby)
13.8 V DC Less than 3 A (10 W) 0.5 A (typ.) 0.3 A (typ.)
7.4 V DC Less than 2.5 A (5 W) 0.8 mA (typ.) 0.5 mA (typ.)
Dimensions
200×83.5×82 mm; 7.9×3.3×3.2 in (W×H×D, projections not included)
Weight
1.1 kg; 2.4 lb (approx.; including BP-272)
* Some frequency bands are not guaranteed.
Output Power SSB/CW/RTTY/FM/DV AM
13.8 V DC 0.1 to 10 W 0.025 to 2.5 W
7.4 V DC 0.1 to 5 W 0.25 to 1.25 W
Modulation system
SSB : Digital PSN modulation
AM : Digital low power modulation
FM : Digital phase modulation
DV : GMSK digital phase modulation
Spurious emissions
Less than −50 dB (HF)
Less than −60 dB (50 MHz)
Less than −60 dB (144/430 MHz)
Carrier suppression
More than 50 dB
Unwanted sideband
Receiver system 0.030 to 24.999 MHz 25.000 MHz and above
RF Direct Sampling Down Conversion IF Sampling
Intermediate frequencies
25.000 MHz and above：38.85 MHz±0.5 MHz
Sensitivity (HF: Preamp-1 ON, 50 MHz: Preamp-2 ON, 144/430/440 MHz: Preamp ON)
0.500 to 1.799 MHz
1.800 to 29.999 MHz
50 MHz to 54 MHz
144/430/440 MHz
SSB/CW(10 dB S/N)
–
0.20 µV
0.15 µV
0.11 µV
AM(10 dB S/N)
13.0 µV
2.0 µV
1.0 µV
FM (12 dB SINAD)
0.5 µV (28.000 to 29.700 MHz)
0.25 µV
0.18 µV
DV (1% BER) (PN9)
1.0 µV (28.000 to 29.700 MHz)
0.63 µV
0.35 µV
Selectivity (Filter: SHARP) SSB(BW=2.4 kHz) CW(BW=500 Hz) RTTY(BW=500 Hz) AM(BW=6 kHz) FM(BW=15 kHz) DV(12.5 kHz spacing)
More than 2.4 kHz/-6 dB / Less than 3.4 kHz/-40 dB More than 500 Hz/-6 dB / Less than 700 Hz/-40 dB More than 500 Hz/-6 dB / Less than 800 Hz/-40 dB More than 6.0 kHz/-6 dB / Less than 10 kHz/-40 dB More than 12.0 kHz/-6 dB / Less than 22 kHz/-40 dB Less than -50 dB
Spurious and image rejection ratio (SSB/CW/AM/FM)
HF 50 MHz 144 MHz 430 MHz
More than 70 dB* (except for ADC aliasing) More than 70 dB* More than 65 dB More than 54 dB
*At intermediate frequency in -25–30 MHz or 50–54 MHz: More than 50 dB
Audio output power Internal SP External SP
More than 530 mW (12Ω load at 10% distortion) More than 200 mW (8Ω load at 10% distortion)
Supplied Accessories
