Geçerli süresi olan Amatör Telsiz Belgesi ibrazı ile satılır.

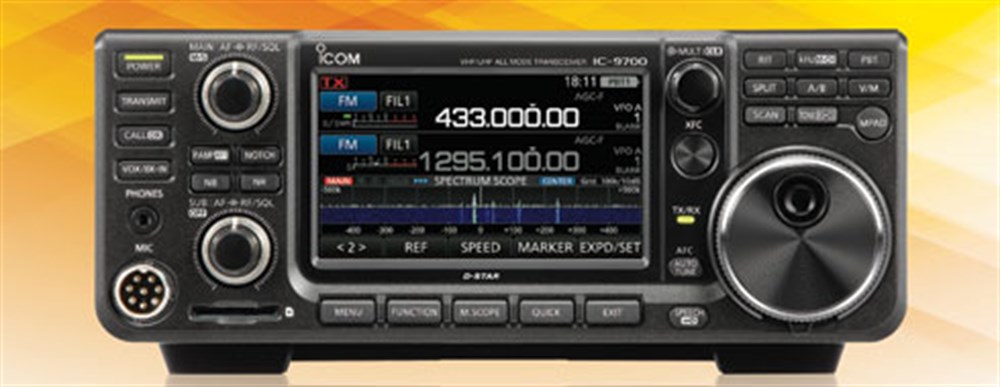

Built with the VHF/UHF weak signal operator in mind, the IC-9700 is an RF direct sampling receiver for 2m and 70cm. The IF receiver consists of a single, down conversion for 23cm that is between 311 – 371MHz. This design provides a quiet receiver due to Icom’s DSP technology. The robust PA provides 100W on 2m, 75W on 70cm, and 10W on 23cm.
In addition to band specific memory channels, the IC-9700 allows band specific receiver and transmitter settings. For transmit, users can make adjustments to RF power, TX power Limit, Limit Power, and TX Delay by band. Basic receiver settings, like the Noise Blanker, Noise Reduction, and others can be tweaked by band with a dynamic Notch and Filter setup by band/mode.
SSB/CW/FM/RTTY/DV/DD 0.5–100 W 0.5–75 W 0.1–10 W
AM 0.125–25 W 0.125–18.75 W 0.025–2.5 W
Harmonics Less than –63 dB Less than –61.8 dB Less than −53 dB
Out-of-band emission Less than −60 dB Less than −60 dB Less than −50 dB
More than 2.4 kHz/−3 dB 500 Hz/−3 dB 500 Hz/−3 dB 6 kHz/−3 dB 12 kHz/−6 dB −50 dB −40 dB
Less than 3.6 kHz/–60 dB 700 Hz/–60 dB 700 Hz/–60 dB 15 kHz/–60 dB 20 kHz/–60 dB
All stated specifications are subject to change without notice or obligation.
