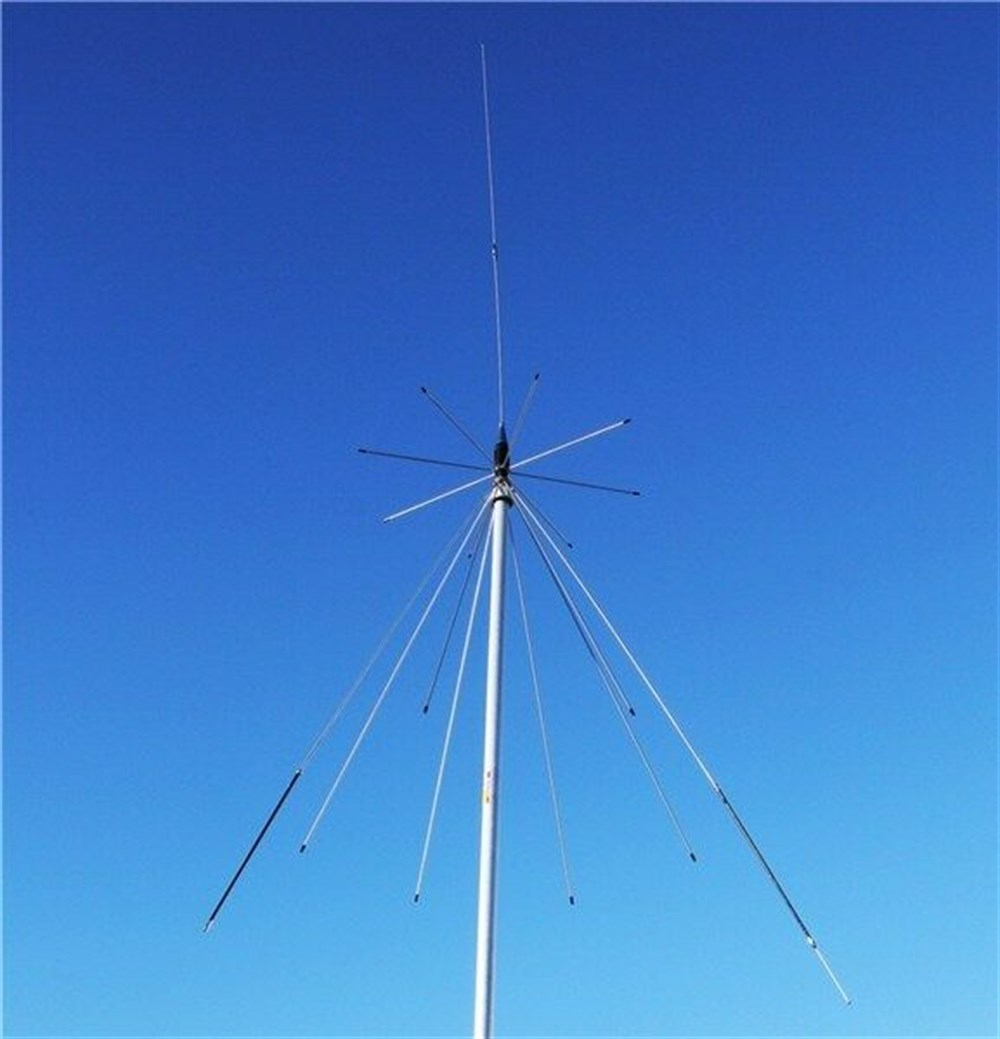

The Icom AH7000 discone antenna receives solid from 25 to 1300 MHz (RX,) It can also be used for transmit on 50, 144, 430, 900 and 1200 MHz (TX) ham bands (under 100 watts).
The discone design offers the best performance possible in an omni-directional antenna.
This stainless steel antenna is 5.5 feet (1.7m) high and attaches to any standard mast from 0.98-2.05 inches (25-52 mm) with two supplied U-bolts. The mast shown is not supplied. Weight is 2.2 lbs. (1 kg).
The AH7000 comes with a preassembled 50 foot cable with an N connector at each end. This connects directly to the Icom R100, R7000, R7100, R8500 and R9500. For other radios with BNC or PL259 antenna input, this plug will need to be replaced or an adapter will be required.
